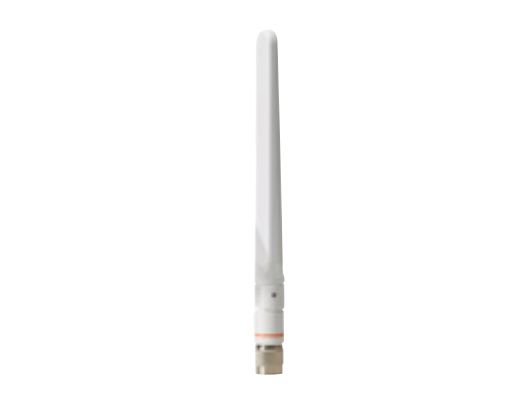

Cisco AIR-ANT2524DW-R= network antenna Omni-directional antenna RP-TNC 4 dBi (AIR-ANT2524DW-R=)

Mfg. SKU: AIR-ANT2524DW-R=

SKU: 1002063

EAN: 0882658459795

General
Antenna gain level (max)
4 dBi
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
2 dBi
Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Width
21 mm
Depth
168.5 mm
Weight
38.5 g
Frequency range
2.4 - 2.5GHz, 5.15 - 5.85GHz
₦30,890.63 ₦28,735.47
Availability: On request
We found other products you might like!

Cisco AIR-ANT2524DW-R= network antenna Omni-directional antenna RP-TNC 4 dBi

Cisco Aironet

This describes the Cisco Aironet high-performance, dual-band dipole antenna, and provides specifications and mounting instructions. The antenna operates in both the 2.4 GHz and 5 GHz frequency bands, and is designed for use with Cisco Aironet 2.4 GHz and 5 GHz radio products with dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4 GHz frequency band and 4 dBi in the 5 GHz frequency band. The AIR-ANT2524Dx-R antennas covered in this document are electrically the same but differ physically by the color of the radome, which is specified by the product part number shown in Table 1. The AIR-ANT2524DW-RS antenna includes self-identifying circuitry.

Cisco AIR-ANT2524DW-R= network antenna Omni-directional antenna RP-TNC 4 dBi

Additional Product Notes

  1. The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.
  2. The AIR-ANT2524DW-RS antenna includes circuitry to enable self identification of the antenna by the Cisco Catalyst 91xx Series access points.
  3. The self identifying function is indicated by a purple band on the antenna. Ensure this antenna is connected to Port A on the AP, which is also designated by purple text around the RP-TNC connector.
  4. This antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the Wireless LAN Controller.
Polarization Voltage Standing Wave Ratio (VSWR) Antenna connector type Antenna gain level (max) Antenna gain (2.4 GHz) Frequency band
Dual polarization 2:1 RP-TNC 4 dBi 2 dBi 2.4/5 GHz
Performance
Antenna gain level (max)
4 dBi
Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
2 dBi
Antenna gain (5 GHz)
4 dBi
Impedance
50 ?
Horizontal beam width (2.4 GHz)
63 °
Horizontal beam width (5 GHz)
39 °
Features
Antenna type
Omni-directional antenna
Antenna connector type
RP-TNC
Connector gender
Male
Voltage Standing Wave Ratio (VSWR)
2:1
Purpose
Indoor
Product colour
Grey
Weight & dimensions
Width
21 mm
Depth
168.5 mm
Weight
38.5 g
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-40 - 85 °C
Other features
Frequency range
2.4 - 2.5GHz, 5.15 - 5.85GHz
